Slide 52 of 110

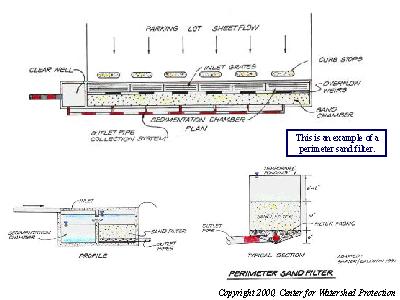

This schematic of a perimeter sand filter shows the plan and a section diagram. Stormwater enters through the inlet grates into a sedimentation chamber and then passes through the sand filter chamber before being conveyed out of the system through an outlet pipe.
