Slide 22 of 75
Notes:

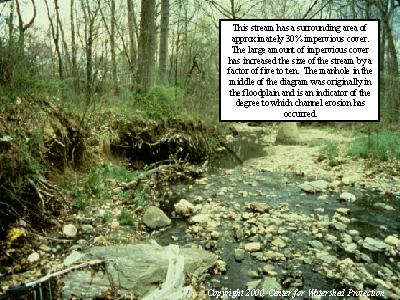

At 30% impervious cover, the stream structure becomes effectively blown out. The large amount of impervious cover has increased the size of the stream five- to ten-fold. The manhole in the middle of the diagram was originally in the floodplain and is an indicator of the degree to which channel erosion has occurred.
